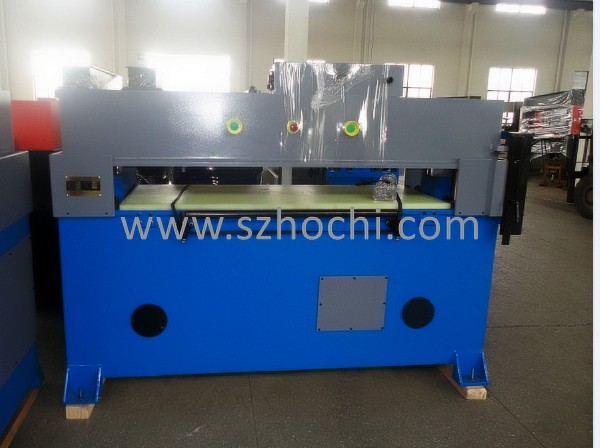

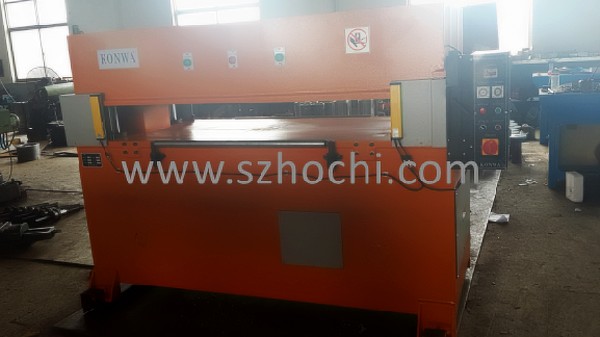

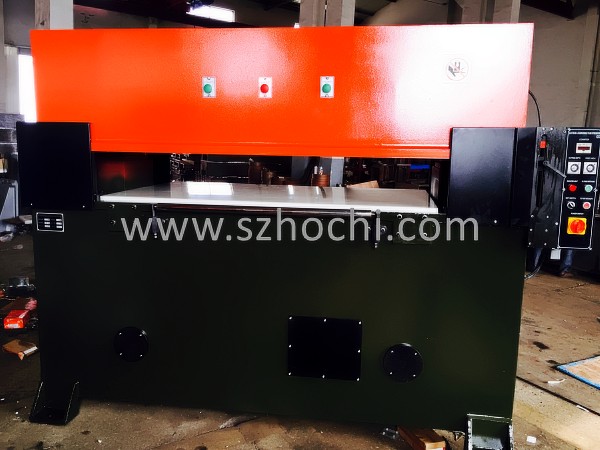

Manual Full beam press

  • Model:HC-DM03
  • Cutting pressure:40T
  • Table size:1600*610mm
  • Size:2200*1100*1600mm
  • Description: Manual Full beam press,fixed head beam press,die cutting press
  • INQUIRY   EMAIL


Features:

1. The machine is widely applicable for cutting of nonmetal materials in various industries by  cutting die;

2. Adopt double oil cylinder, precise double-crank connecting rod mechanism, which can guarantee that the cutting depth at every cutting position is same;

3. With special setting mechanism, and equipped with die cutter and cutting depth setting, the travel adjustment is simple and accurate;

4. The pressing board of cutting carries out slow cutting when it contacts the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials;

5. The Full Head series has a strong exterior reinforced construction consisting of heavy duty weldments. This press is built for the long term which our customers expect;

6. Very efficient for making clean cuts of multiple layers of material;

7. Simple to learn - Die height and material height can be reset in less than ten seconds with easy to use controls for setting die and material height which provides a fast set up time;

8. Low electrical power consumption which helps make the machine very quiet;

9. Low maintenance due to an automatic central lubricating system which continuously lubricates all of the main bushings and bearings.


Specifications:

Maximum cutting force

350KN

400KN

500KN

600KN

800KN

1000KN

1300KN

1500KN

2000KN

Tension distance (mm)

50-200

50-200

50-200

50-200

50-200

50-200

50-200

50-200

50-200

50-245

50-245

50-245

Cutting area(mm)

1600*610

1600*610

1600*800

1600*900

1600*900

1600*900

1600*1000

1600*1000

1600*1000

1250*610

1250*610

1250*800

1400*900

1400*900

1400*900

1400*1000

1400*1000

1400*1000

Motor power

2.2kw

3kw

4kw

5.5kw

7.5kw

7.5kw

11kw

11KW

11kw

G.W(kg)

2100

2300

3800

4800

6300

7800

10000

11500

13500

1900

2000

3600

4600

6100

7600

9500

11200

13000
