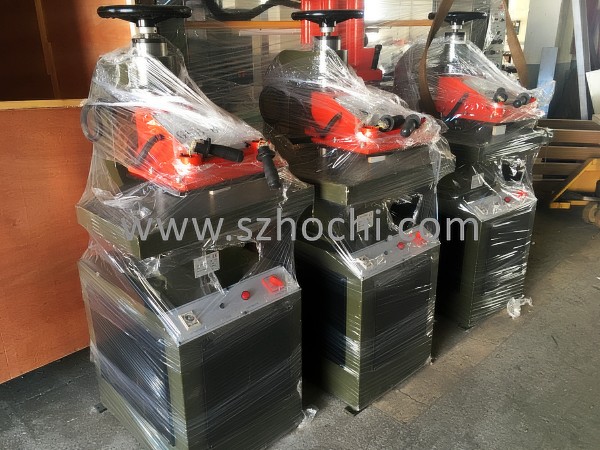

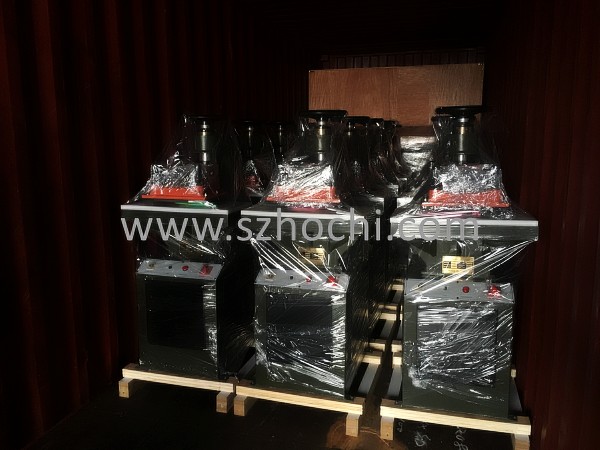

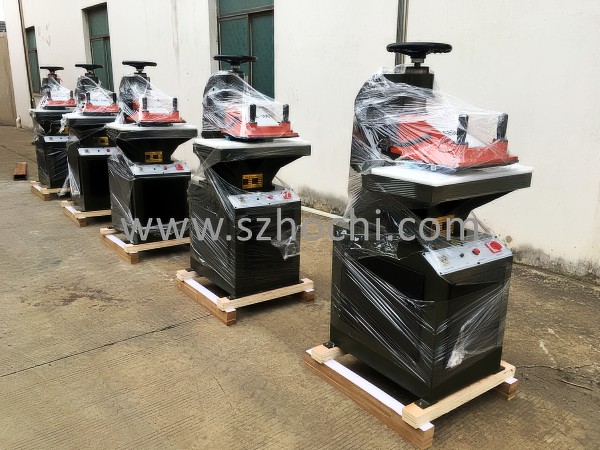

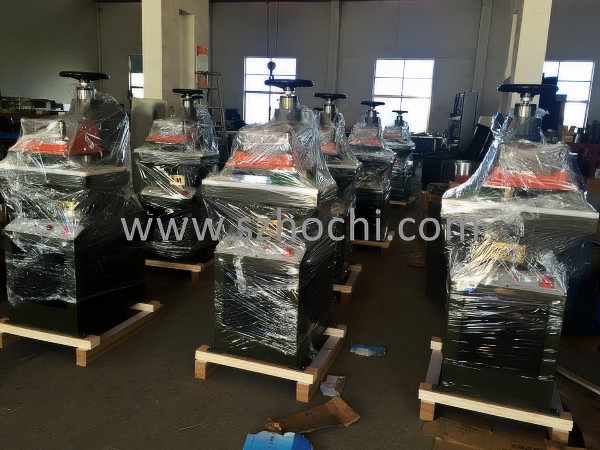

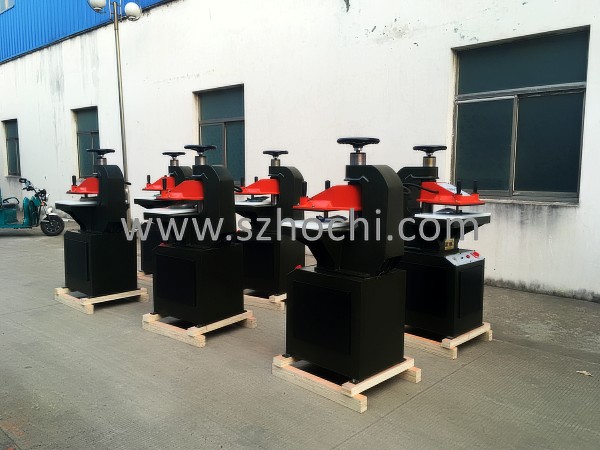

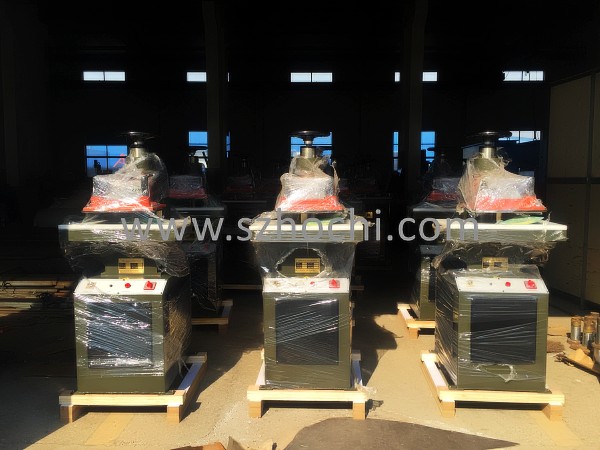

GSB100 swing arm cutting press

This machine is suitable for cutting the nonmetallic materials with small-sized cutting die,ticket clip units,handset sleeve,small toys,adornments,leather bag fitting etc.

1.With rotary swing arm,easy to operate.

2.The upright column is made of high-grade seamless steel tube,supported by two upper and lower holes ,to ensure the upper stroke board can turn smoothly,with good reliability.

3.Adopt the switches that are operated by two hands ,to ensure the operator is safe.

4.The position of the swing arm is adjusted by the upper hand wheel on the machine,blanking travel is controlled by the timer,thus it is easy to obtain the best cutting position ,which can increase work efficiency and prolong the service life of the cutting die and cutting board

5.Use flywheel inertia stored energy to save energy.

Main Technical Parameters

1. Max Cutting Force 100kN

2. Cutting Speed 0.085m/s

3. Adjusting Range of Stroke 8-65mm

4. Daylight 60-130mm

5. Beam Width 380 x 280mm

6. Working Table 650*330mm

6. Dimensions 660x780x1500mm

7. Power of Motor 0.75kw

8. Weight 400kg
