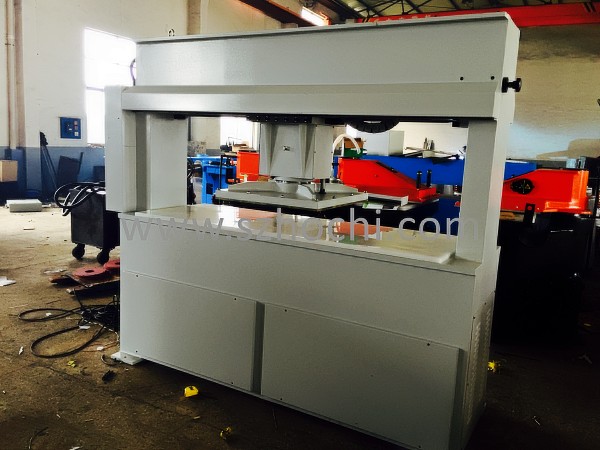

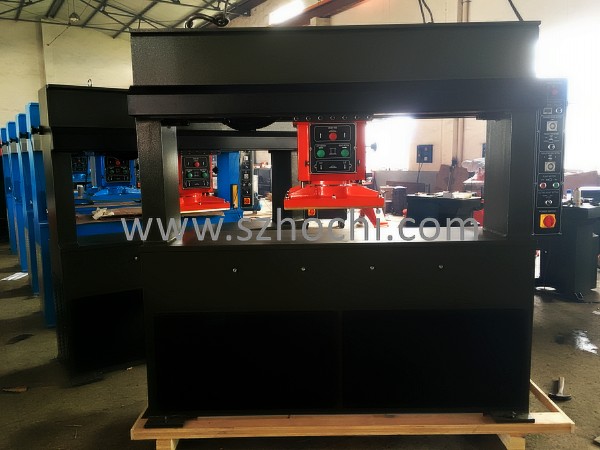

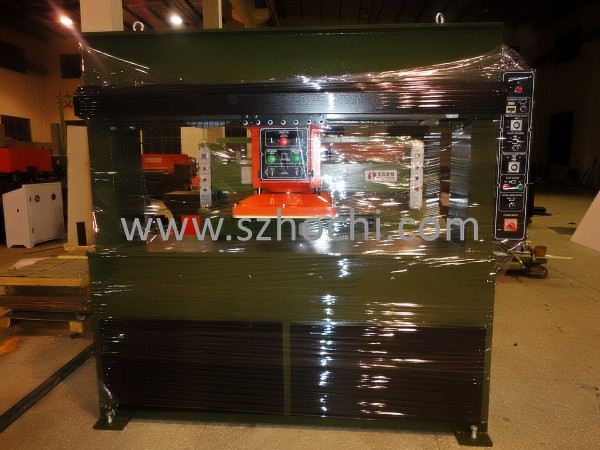

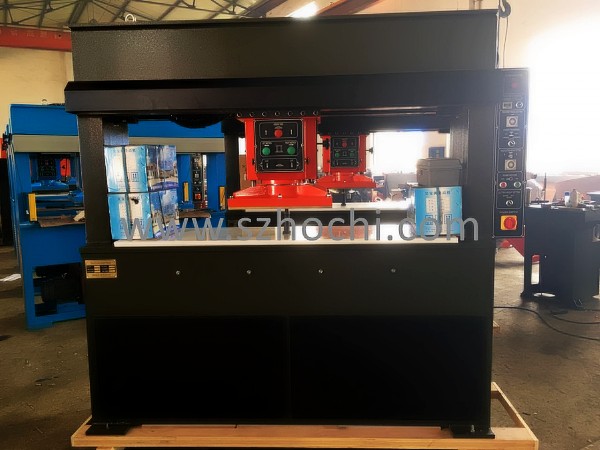

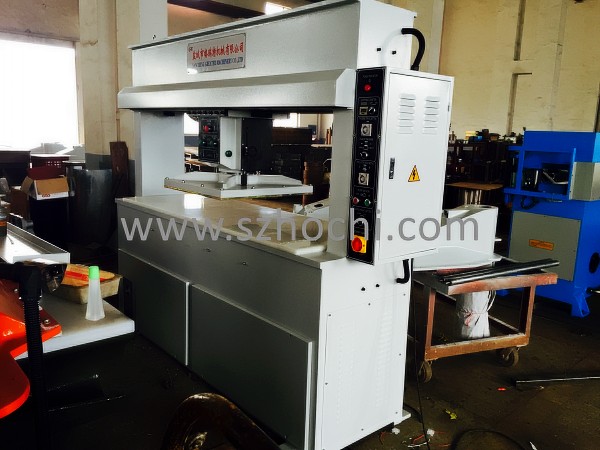

Features:
1. It is used to cut one layer or multi-layer of leather, rubber, plastic, hard papers, fiber, and chemical fiber;
2. Gantry frame structure is adopted, with high intensity and without deformation.
3. The punch head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.
4. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
5. The movement of punch head is controlled by automatic speed variation to realize flexible movement with accurate positioning and without impact.
6. Differential oil way is adopted to allow rapid and convenient cutting.
Specifications:
|
Model
|
DM02/250 |
DM02/250A |
DM02/300 |
DM02/500 |
DM02/500A |
DM02/500B |
|
Maximum cutting force |
250KN |
250KN |
300KN |
500KN |
500KN |
500KN |
|
Working table (mm) |
1600*500 |
1800*650 |
2000*750 |
1600*550 |
1800*650 |
2000*750 |
|
Travel head size(mm) |
500*500 |
650*650 |
750*750 |
550*550 |
650*650 |
750*750 |
|
Adjustable stroke (mm) |
5-150 |
5-150 |
5-150 |
5-150 |
5-150 |
5-150 |
|
Motor power |
2.2KW |
2.2KW |
3KW |
4.0KW |
4.0KW |
4.0KW |
|
Machine’s dimensions(mm) |
2200*620*2000 |
2400*780*2000 |
2600*870*2100 |
2200*620*2000 |
2400*800*2000 |
2600*900*2100 |
|
G.W |
2000kg |
2500kg |
3500kg |
3800kg |
4800kg |
5800kg |
