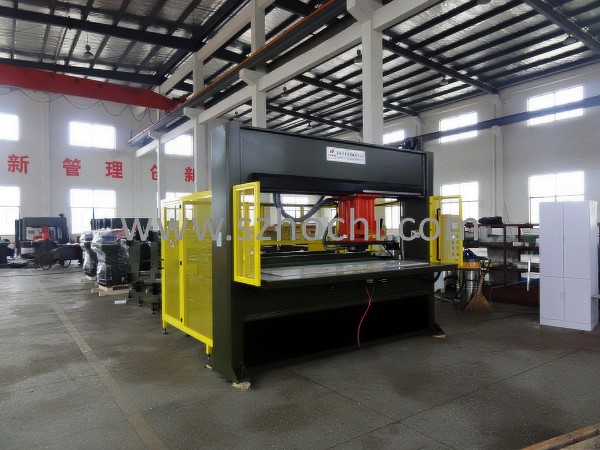

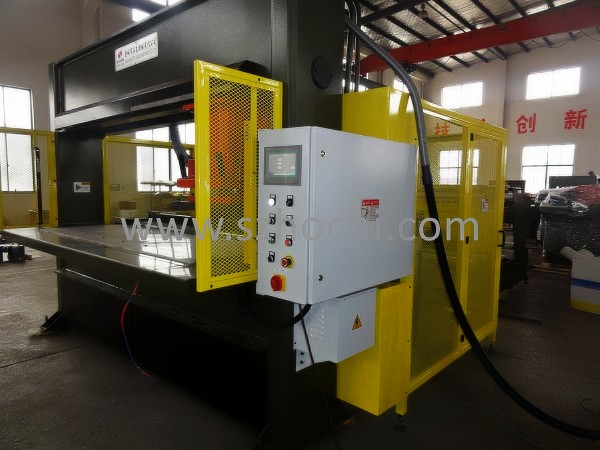

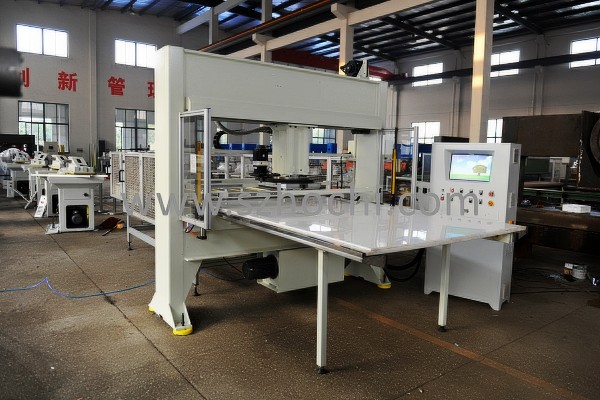

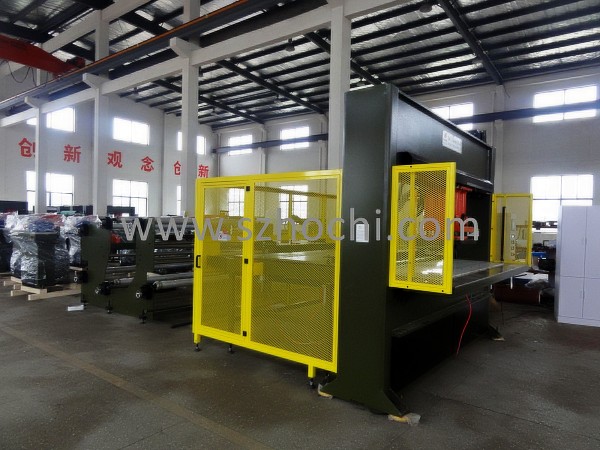

HC-DA01 Travelling Head Cutting Press

  • Model:HC-DA01
  • Cutting pressure:25T
  • Table size:1800*500mm
  • Size:2400*3000*2200mm
  • Description: Automatic Travelling Head Cutting Press
  • INQUIRY   EMAIL

Features:

1. The machine is applicable to continuous cutting nonmetal rolled materials of same specifications and large batches by die cutter. used in such industries as football, volleyball, tennis and medicine etc.

2. The servo motor is adopted to control the horizontal movement of cutting head, and the multilayer materials are clamped by the cylinder for stepping feeding. The machine can automatically complete the cutting of materials and the displacement distance of cutting head and feeding length can be accurately set, which has solved the problem of inaccurate feeding and layering length of multilayer materials.

3. The machine has various working modes such as manual,semi-auto and automatic etc.  The workers need only to pick up the finished materials, with labor intensity reduced and work efficiency enhanced.

4. The machine has cutting modes of stagger, stagger blade reducing and die cutter rotation etc., which can save 10%~15% of raw materials.

5. As the machine is controlled by microcomputer with high automation degree, only one worker is required for the whole machine, so that the production efficiency can be enhanced for 3-5 times and the power can be almost 1/3 saved.

6. With special setting mechanism, and in conjunction with die cutter and cutting depth setting, the travel adjustment is simple and accurate.

7. Option:1.Photocell

2.360 degree head rotation

3.Big size press head size(650*650mm,750*750mm)


Specifications:

1.Max. Cutting force:300KN;

2.Cutting Area:1800×500mm;

3.Press Head:500×500mm;

4.The distance between the table and head:180mm;

5.Adjustable Travel:5-150mm;

6.Cutting Speed:100mm/S;

7.Working Frequency:40-50 times/min;

8.Main Motor Power:2.2KW;

9.Servo Motor Power(Transverse motor):2KW;

10.Servo Motor Power(Feeding motor):0.75KW; Customized

11.Hydraulic System Working Pressure:≤31.5MPa;

12.Air Source: ≤0.6MPa;

13.Power Supply:AC380V/50HZ Customized
