Footwear components

F60 Swing Arm Clicker Press

Cutting pressure:27T
Table size:1000*500mm
Beam width:500mm
Size:1000*1000*1500mm
Description: F60 Swing Arm Clicker Press,swing arm cutting machine,cutting press,clicker press
INQUIRY EMAIL

Automatic stroke end with pressure switch to use cutting-knives of different height, without any adjustment, + ELECTRONIC CUT.

ELECTRONIC CUT:

This simple and innative system permits die cutting of various depths without the need for changing adjustment settings. This system also permits working with very small dies without cutting into the cutting block.

Main technical data:

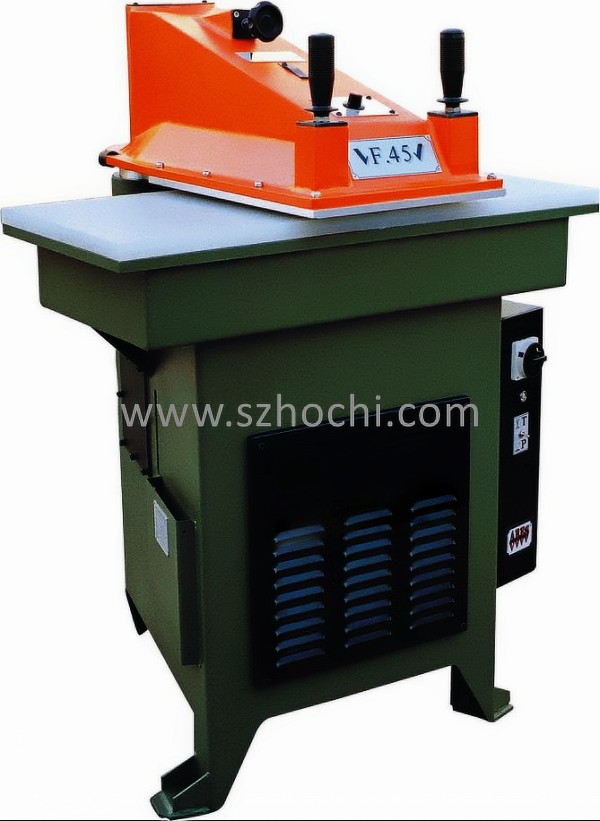

Model	F45	F50	F60
Max.Cutting Force	20T	27T	27T
Maximum Stroke	80mm	100 mm	100 mm
Cutting Table	900 x 430(mm)	900 x 450(mm)	1000 x 500(mm)
Arm Width	370 mm	380 mm	500 mm
Motor Power	1HP	1.5HP	1.5HP
Electric Supply Voltage	3x440/415/400/380/220V, 50/60 Hz
Electric Supply Voltage	Single phase 240V/220V, 50/60 Hz
Net Weight With Oil	570Kg	780Kg	840Kg
Gross weight	640Kg	900Kg	980Kg
Packing Size	1050 x1085x 1500(mm)	1050 x 1150 x 1570(mm)	1150 x 1150 x 1570(mm)
