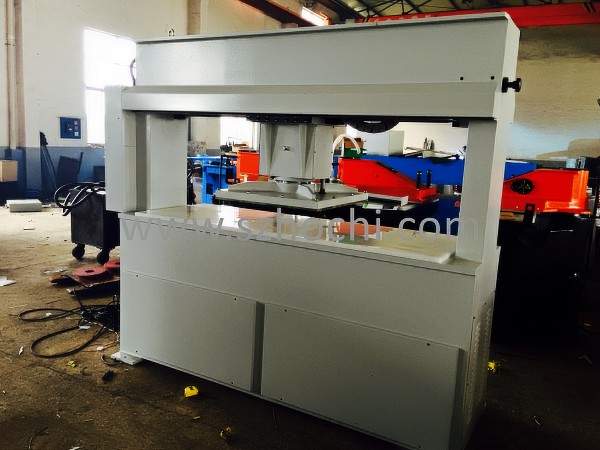

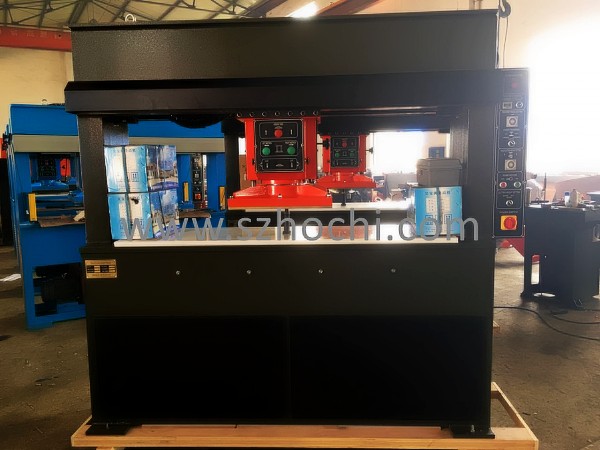

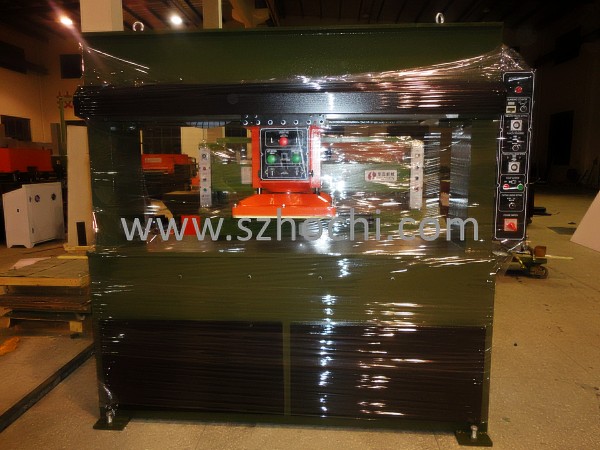

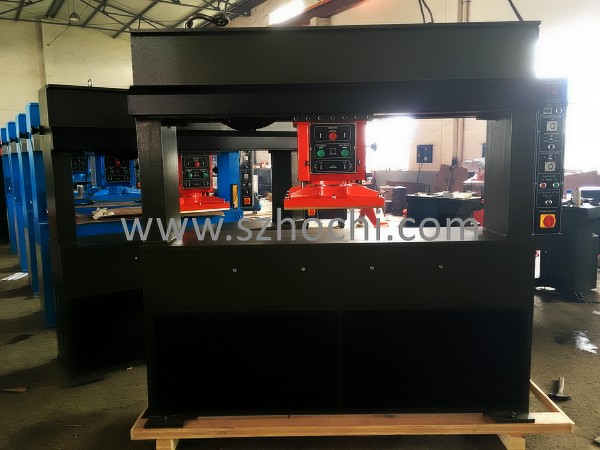

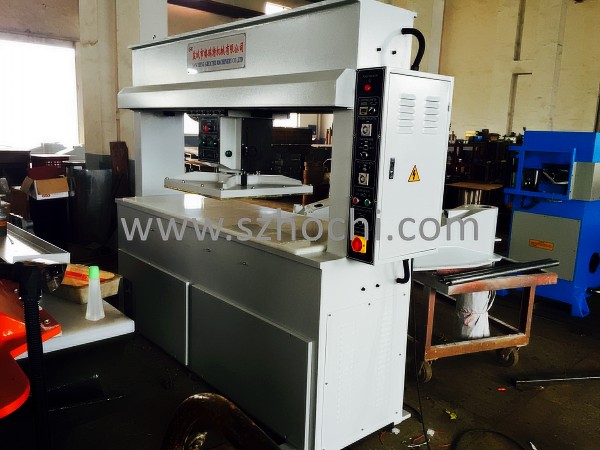

HC-DM02 Manual Travelling head press

  • Model:HC-DM02
  • Cutting pressure:25T
  • Table size:1600*500mm
  • Size:2200*620*2000mm
  • Description:
  • INQUIRY   EMAIL

Features:

1. It is used to cut one layer or multi-layer of leather, rubber, plastic, hard papers, fiber, and chemical fiber;

2. Gantry frame structure is adopted, with high intensity and without deformation.

3. The punch head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.

4. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.

5. The movement of punch head is controlled by automatic speed variation to realize flexible movement with accurate positioning and without impact.

6. Differential oil way is adopted to allow rapid and convenient cutting.


Specifications:

Model

DM02/250

DM02/250A

DM02/300

DM02/500

DM02/500A

DM02/500B

Maximum cutting force

250KN

250KN

300KN

500KN

500KN

500KN

Working table (mm)

1600*500

1800*650

2000*750

1600*550

1800*650

2000*750

Travel head  size(mm)

500*500

650*650

750*750

550*550

650*650

750*750

Adjustable stroke (mm)

5-150

5-150

5-150

5-150

5-150

5-150

Motor power

2.2KW

2.2KW

3KW

4.0KW

4.0KW

4.0KW

Machine’s dimensions(mm)

2200*620*2000

2400*780*2000

2600*870*2100

2200*620*2000

2400*800*2000

2600*900*2100

G.W

2000kg

2500kg

3500kg

3800kg

4800kg

5800kg
