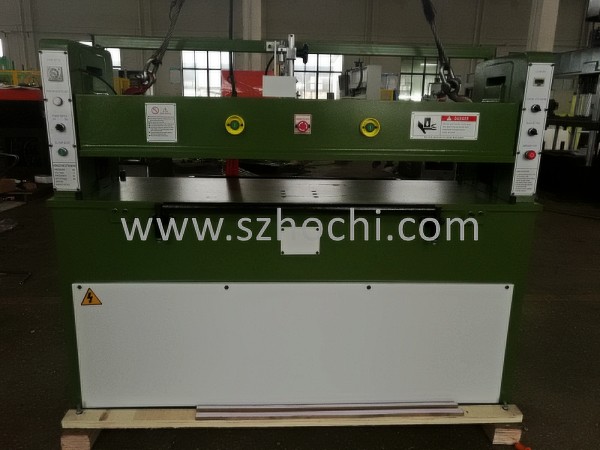

Hydraulic plane cutting machine

  • Hydraulic plane cutting machine
  • Hydraulic plane cutting machine
  • Hydraulic plane cutting machine
Hydraulic plane cutting machineHydraulic plane cutting machineHydraulic plane cutting machine

Hydraulic plane cutting machine

  • Cutting pressure:30T
  • Table size:1600*500mm
  • Size:2000*700*1600mm
  • Weight:1800KG
  • Description: Hydraulic plane cutting machine
  • INQUIRY   EMAIL

USE AND CHARACTERISTICS:

1. The machine is installed with central oil supply lubrication and collecting, reflowing and filtering system, which can fully lubricate the main shaft and prolong the service life of machine.

2. Large area of pressing board of cutting makes it possible to cut large-sized materials.

3. Operation with both hands, safe and reliable.

4. The cutting depth of cutter is simple to set and the cutting is accurate.

5. The height of return travel of pressing board can be set freely, which reduces unnecessary idle travel.

6. Products of special specifications can be customized.


TECHNICAL SPECIFICATION:

Maximum cutting force

300KN

Tension distance(mm)

60-160

Working table(mm)

1600*500

Adjustable stroke(mm)

5-100

Motor power

2.2KW

G.W

1800kg
